    124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M369TP-KP-FN-BL-DT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Price : to be quoted
    • Product Details
    • Company Profile

    124 Keys Washable Medical Keyboard IP68 Sealed & Ruggedized Industrial


    Medical washable silicone rubber keyboard


    DESCRIPTION: 124 keys IP68 dynamic sealed & ruggedized industrial silicone rubber contamination-proof keyboard with full keyboard functionalities with FN (F1, F2...F23, F24) on upper line, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor position, with carbon-on-gold key switch technology with key stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment, standard alone desk top version. Blue backlight included. With direct light button for backlight on or off. With special button for power-off or power-on the entire keyboard without needing to take out the USB cable from PC USB port, which avoid to be with mis-operation during cleaning the keyboards.

    DIMENSIONS: 369.0mm x 135.0mm x 11.0mm (L x W x H)


    MECHANICAL DATA
    Key124 keys (including 2 mouse buttons)
    Key top styleProtuberant rectangular keys with tactile feeling.
    Key Size12.0mm X 12.0mm for normal keys
    Key travel1.50mm±0.10mm
    Actuation Force1.2N±0.2N (pressure point )
    Switch lifemore than 5 million of operations.
    Touch pad1.3mm thick PCB, containing polyester film
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5V ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.0.80KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology with gold PCB
    InterfacePS2, USB available
    Cable lengthStandard 2.0m, customized length available.
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity100%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified
    Protection LevelIP68
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSMEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc.;
    MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses MILITARY:Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc.

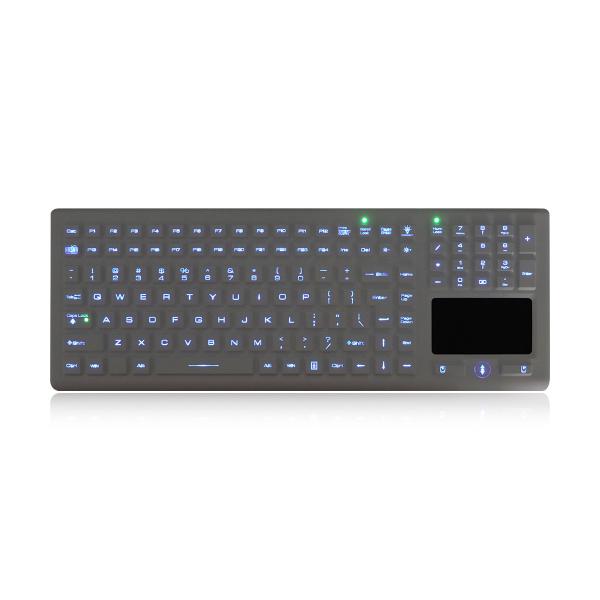

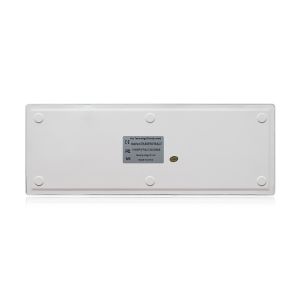

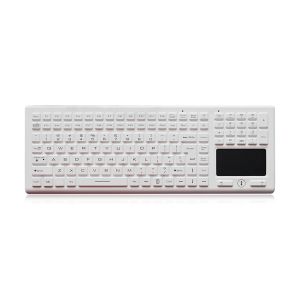

    Actual pictures:
